Productdetails
Plaats van herkomst: Henan, China
Merknaam: Zhenglan cable
Certificering: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

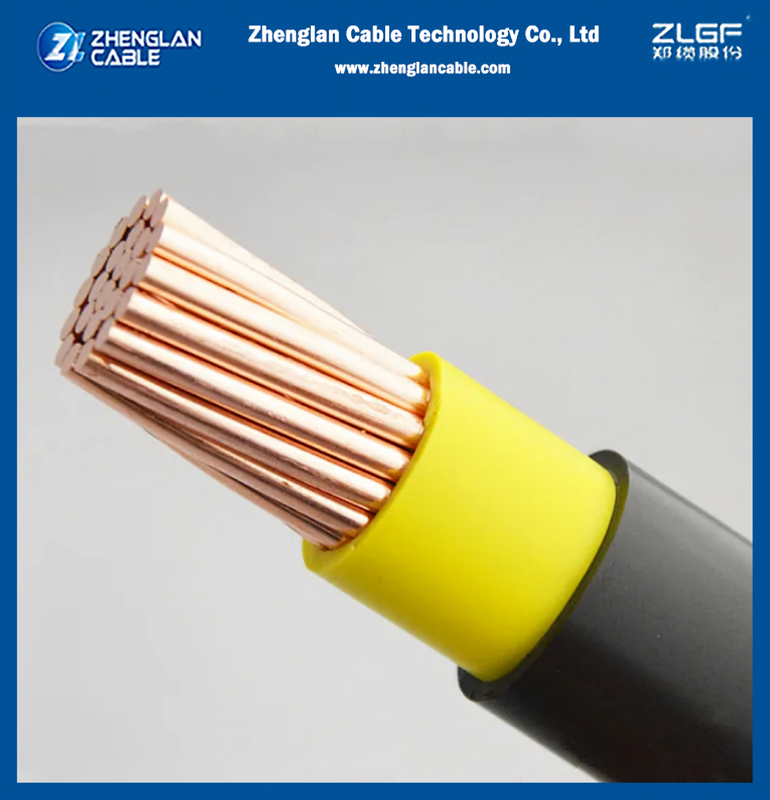

Modelnummer: 1kv Cu/PVC/PVC NYY-voedingskabel LV-voedingskabel 1x185mm2 IEC60502-1
Betaling en verzendvoorwaarden
Min. bestelaantal: 1000 meter
Prijs: Bespreekbaar
Verpakking Details: Volledig houten trommel, stalen houten trommel, volledig stalen trommel of op maat
Levertijd: 15 werkdagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 20000M/DAY
Materiaal: |
CU |
Isolatie: |
PVC |
Schede: |
PVC |
Kleur van de buitenste schede: |
Zwart of aangepast |
Kabel lengte: |
Volgens vereiste |
Spanning: |
0.6/1kV |
Standaard: |
IEC60502-1 |
Haven: |
Qingdao |
Materiaal: |
CU |
Isolatie: |
PVC |
Schede: |
PVC |
Kleur van de buitenste schede: |
Zwart of aangepast |
Kabel lengte: |
Volgens vereiste |
Spanning: |
0.6/1kV |
Standaard: |
IEC60502-1 |
Haven: |
Qingdao |
They are used as power and control cables in static installations, indoors, in the open air, underground and in water. Direct burial is permitted only under certain conditions.
CABLE MAKE-UP
• Conductors: Solid or stranded (IEC60502 Class 2) bare copper conductors (re=round solid conductor, rm=round stranded conductor, sm=sectorial stranded conductor).
• Insulation: PVC.
• Core Identification: Up to 5 cores color coded according to VDE 0293. 7 cores and above black with white numbering. (-O: a green-yellow earth conductor is not included, -J: a green-yellow earth conductor is included).
• Inner PVC sheath.
• Outer Sheath: PVC standard color black.
• Voltage Rating: 600/1000 V.
• Temperature Range: -20 o C to 70 o C.
• Bending Radius: 15 x cable diameter (solid conductors). 12.5 x cable diameter (stranded conductors).
| Single Core | ||||||
| Nominal cross section | No. of wire and conductor shape | Nominal Thickness | Overall Diameter | Weight | ||
| mm2 | pcs | - | Insulation | Outer sheath | mm | kg/km |
| 185 | 37 | rm | 2.0 | 1.7 | 25 | 2009 |
![]()
![]()
![]()
![]()
About zhenglan cable:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
